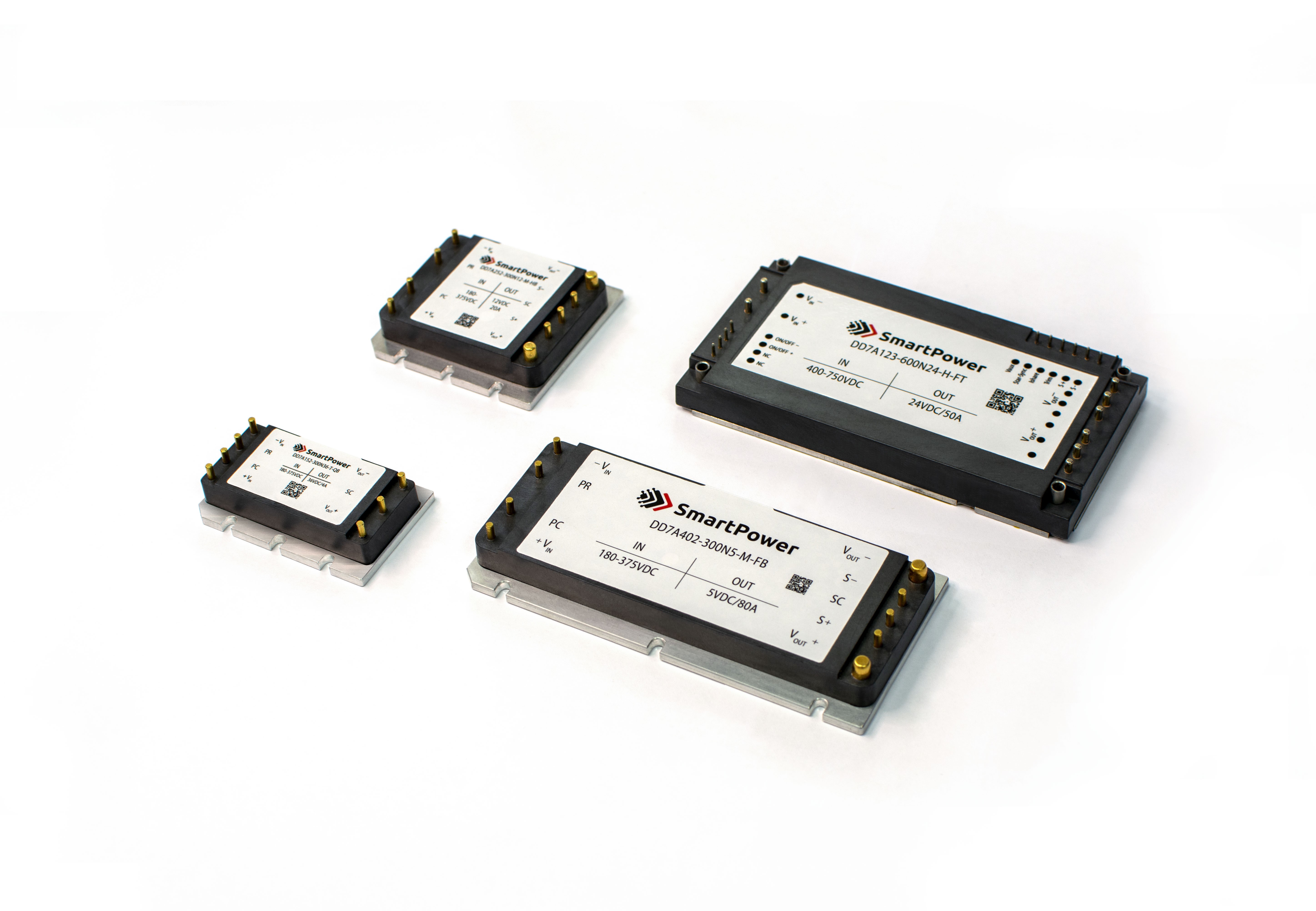

We offer high reliable power supplies that meet world quality standards set by vendors as Vicor, SynQor industrial brick series, INTERPOINT and others. DC/DC converters in standard Full Brick, Half Brick, Quarter Brick size packages with the power of up to 600 W, a wide range of input voltages, and the output voltage from 3.3 to 48V (depending on the power).
Both single-output and multi-channel converters have all necessary types of protection, feature high efficiency, low noise level, are capable of operation in a wide temperature range from -55 to +125 °С.
| Series | Description | Short Description | Application | Datasheets |
|---|---|---|---|---|
| DD3BA102 | The DD3BA102 series - Quarter Brick converter is composed of Isolated, board-mountable, fixed switching frequency DC/DC power supplies that use synchronous rectification to achieve high level conversion efficiency. These DC-DC converter modules use advanced power processing, control and packaging technologies to enhance the performance, flexibility, reliability and cost effectiveness of mature power components. Each module is six-sided metal case enclosed to provide protection from the harsh environments. | Quarter Brick 100W protected DC-DC module | Railway, Industry, Military, Automation, Semiconductor, Telecom Network | Download |
| DD3A152 | The DD3A152 series - is composed of Isolated, board-mountable, fixed switching frequency DC-DC converters that use synchronous rectification to achieve high-power conversion efficiency. These DC-DC converter modules use advanced power processing, control and packaging technologies to enhance the performance, flexibility, reliability and cost effectiveness of mature power components. Each module is aluminum case enclosed to provide protection from the harsh environments. | Quarter Brick 150W protected DC-DC module | Railway, Industry, Military, Automation, Semiconductor, Telecom Network | Download |
| DD3A202 | The DD3A202 series - Half Brick 200W converter is composed of Isolated, board-mountable, fixed switching frequency DC- DC converters that use synchronous rectification to achieve extremely high-power conversion efficiency. Each module is six-sided metal case enclosed to provide protection from the harsh environments | Half Brick 200W protected DC-DC module (Vicor, DOSA pin-out) | Railway, Industry, Military, Automation, Semiconductor, Telecom Network | Download |
| DD3A302 | The DD3A202 series - Half Brick 300W converter is composed of Isolated, board-mountable, fixed switching frequency DC- DC converters that use synchronous rectification to achieve extremely high-power conversion efficiency. Each module is six-sided metal case enclosed to provide protection from the harsh environments | Half Brick 300W protected DC-DC module | Railway, Industry, Military, Automation, Semiconductor, Telecom Network | Download |
| DD3A402 | The DD3A402 series - Full Brick converter is composed of Isolated, board-mountable, fixed switching frequency DC/DC power supplies that use synchronous rectification to achieve high level conversion efficiency. These DC-DC converter modules use advanced power processing, control and packaging technologies to enhance the performance, flexibility, reliability and cost effectiveness of mature power components. Each module is six-sided metal case enclosed to provide protection from the harsh environments. | Full Brick 400W protected DC-DC module | Railway, Industry, Military, Automation, Semiconductor, Telecom Network | Download |
| DD3B501 | The DD3B501 series - Quarter Brick converter is composed of Isolated, board-mountable, fixed switching frequency DC/DC power supplies that use synchronous rectification to achieve high level conversion efficiency. These DC-DC converter modules use advanced power processing, control and packaging technologies to enhance the performance, flexibility, reliability and cost effectiveness of mature power components. Each module is six-sided metal case enclosed to provide protection from the harsh environments. | Quarter Brick 50W protected DC-DC module | Railway, Industry, Military, Automation, Semiconductor, Telecom Network | Download |
| DD3B501F | The DD3B501 series - Full Brick converter is composed of Isolated, board-mountable, fixed switching frequency DC/DC power supplies that use synchronous rectification to achieve high level conversion efficiency. These DC-DC converter modules use advanced power processing, control and packaging technologies to enhance the performance, flexibility, reliability and cost effectiveness of mature power components. Each module is six-sided metal case enclosed to provide protection from the harsh environments. | Full Brick 50W protected DC-DC module | Railway, Industry, Military, Automation, Semiconductor, Telecom Network | Download |
| DD3B102F | The DD3B102 series - Full Brick converter is composed of Isolated, board-mountable, fixed switching frequency DC/DC power supplies that use synchronous rectification to achieve high level conversion efficiency. These DC-DC converter modules use advanced power processing, control and packaging technologies to enhance the performance, flexibility, reliability and cost effectiveness of mature power components. Each module is six-sided metal case enclosed to provide protection from the harsh environments. | Full Brick 100W protected DC-DC module | Railway, Industry, Military, Automation, Semiconductor, Telecom Network | Download |
| DD3B202F | The DD3B202 series - Full Brick converter is composed of Isolated, board-mountable, fixed switching frequency DC/DC power supplies that use synchronous rectification to achieve high level conversion efficiency. These DC-DC converter modules use advanced power processing, control and packaging technologies to enhance the performance, flexibility, reliability and cost effectiveness of mature power components. Each module is six-sided metal case enclosed to provide protection from the harsh environments. | Full Brick 200W protected DC-DC module | Railway, Industry, Military, Automation, Semiconductor, Telecom Network | Download |
| DD3A602 | The DD3A602 series - Full Brick converter is composed of Isolated, board-mountable, fixed switching frequency DC/DC power supplies that use synchronous rectification to achieve high level conversion efficiency. These DC-DC converter modules use advanced power processing, control and packaging technologies to enhance the performance, flexibility, reliability and cost effectiveness of mature power components. Each module is six-sided metal case enclosed to provide protection from the harsh environments. | Full Brick 600W protected DC-DC module | Railway, Industry, Military, Automation, Semiconductor, Telecom Network | Download |
| DD7A152-300N | The DD7A152-300N DC-DC converter modules use patended circuit topology with PFM control, advanced power processing, control and packaging technologies to provide high efficiency, high power density and low noise. | Quarter Brick 150W protected DC-DC module 300V input and wide output from 3.3V to 48V | Aerospace, aviation, ships, weapons and industrial control systems. | Download |
| DD7A152-24N | The DD7A152-24N DC-DC converter modules use patended circuit topology with PFM control, advanced power processing, control and packaging technologies to provide high efficiency, high power density and low noise. | Quarter Brick 150W protected DC-DC module 24V input and wide output from 3.3V to 48V | Aerospace, aviation, ships, weapons and industrial control systems. | Download |
| DD7A202-300N | The DD7A202-300N DC-DC converter modules use patended circuit topology with PFM control, advanced power processing, control and packaging technologies to provide high efficiency, high power density and low noise. | Half Brick 200W protected DC-DC module 300V input and wide output from 3.3V to 48V | Aerospace, aviation, ships, weapons and industrial control systems. | Download |
| DD7A202-24N | The DD7A202-24N DC-DC converter modules use patended circuit topology with PFM control, advanced power processing, control and packaging technologies to provide high efficiency, high power density and low noise. | Half Brick 200W protected DC-DC module 24V input and wide output from 3.3V to 48V | Aerospace, aviation, ships, weapons and industrial control systems. | Download |
| DD7A602 | The DD7A602-300N DC-DC converter modules use patended circuit topology with PFM control, advanced power processing, control and packaging technologies to provide high efficiency, high power density and low noise. The modules have input over-voltage and under-voltage protection, output over-voltage and over-current protection, output short-circuit protection and overtemperature protection. | Full Brick 600W protected DC-DC module 300V input and wide output from 3.3V to 48V | Aerospace, aviation, ships, weapons and industrial control systems. | Download |
| DD7B301-28N(U) | The DD7B301-28N(U) series thick-film hybrid DC/DC power module product is manufactured by the thick-film hybrid integration process, assembled by bare chips and packaged by a metal sealed vase. | The DD7B301-28N(U) series thick-film hybrid DC/DC power module with single or dual output. | Aerospace, aviation, ships and another high reliable systems. | Download |
| Series | Description | Short Description | Application | Datasheets |
|---|---|---|---|---|
| DP2B502 | The DP2B502 series - Half Brick 500W protected PFC module is composed of Isolated, board-mountable PFC converters achieve extremely high-power conversion efficiency | Half Brick 500W protected PFC | Harsh environments, Industrial and transportation applications | Download |
| DF5A80 | The DF5A80 series is an EMI filters with surge protection capability (100V, 1s). It is used together with the DC-DC converter to reduce the high-frequency reflection noise of the DC-DC converter on the power line, so that the noise emission limit on the power line. Industry standard Quarter-Brick case. | 30A EMI filter | Telecommunications, battery operated equipment and industrial applications. | Download |
